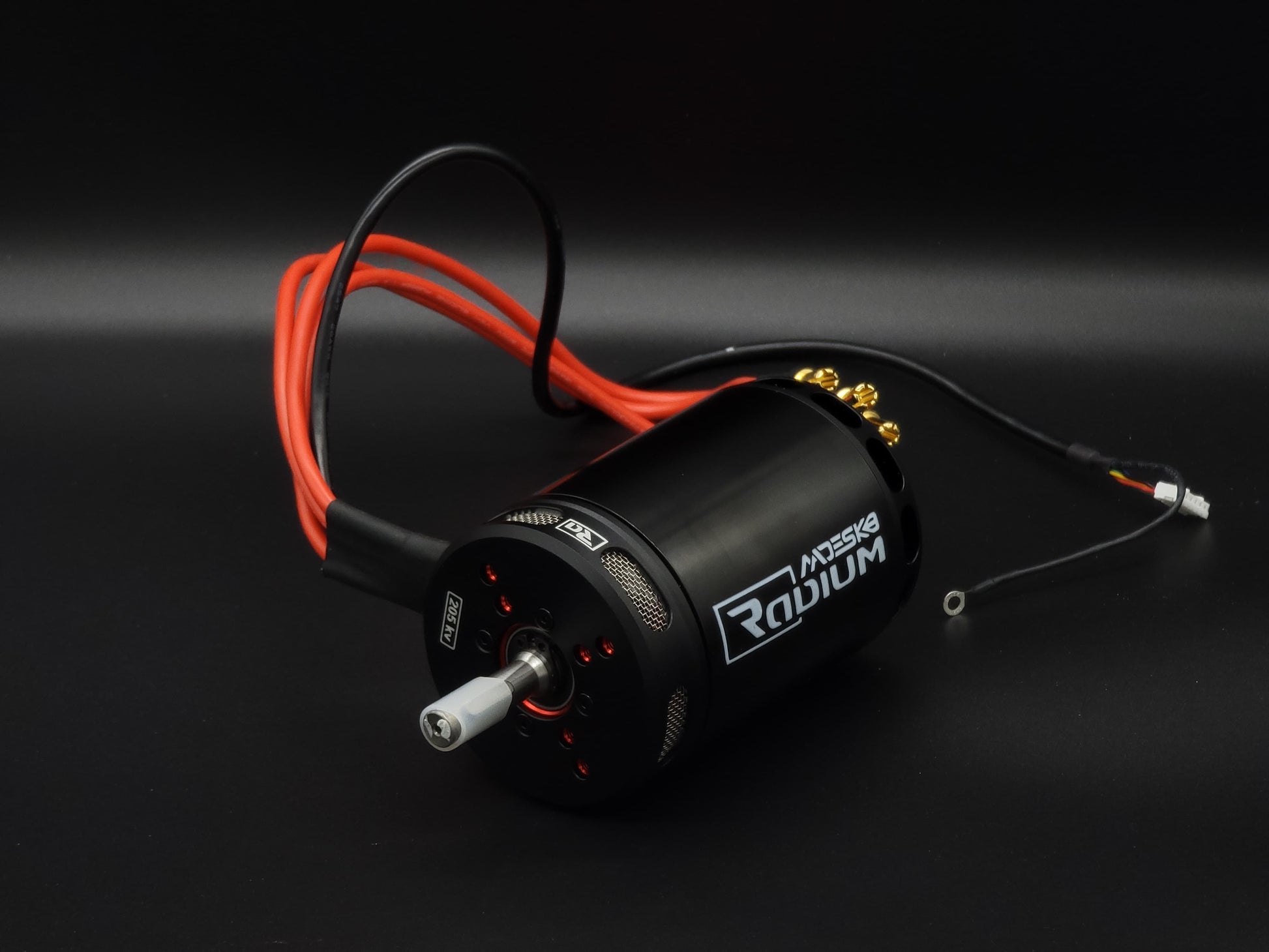

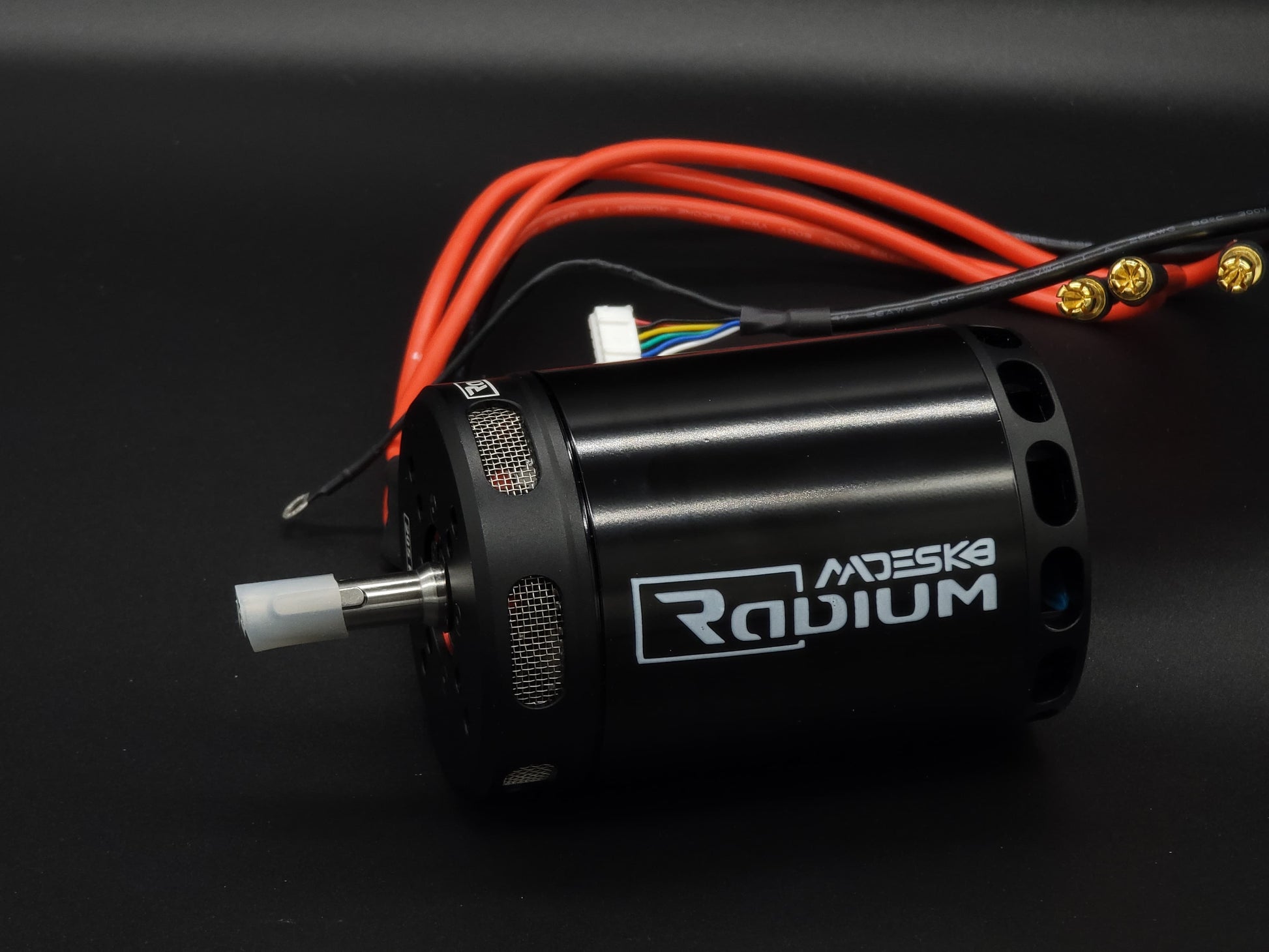

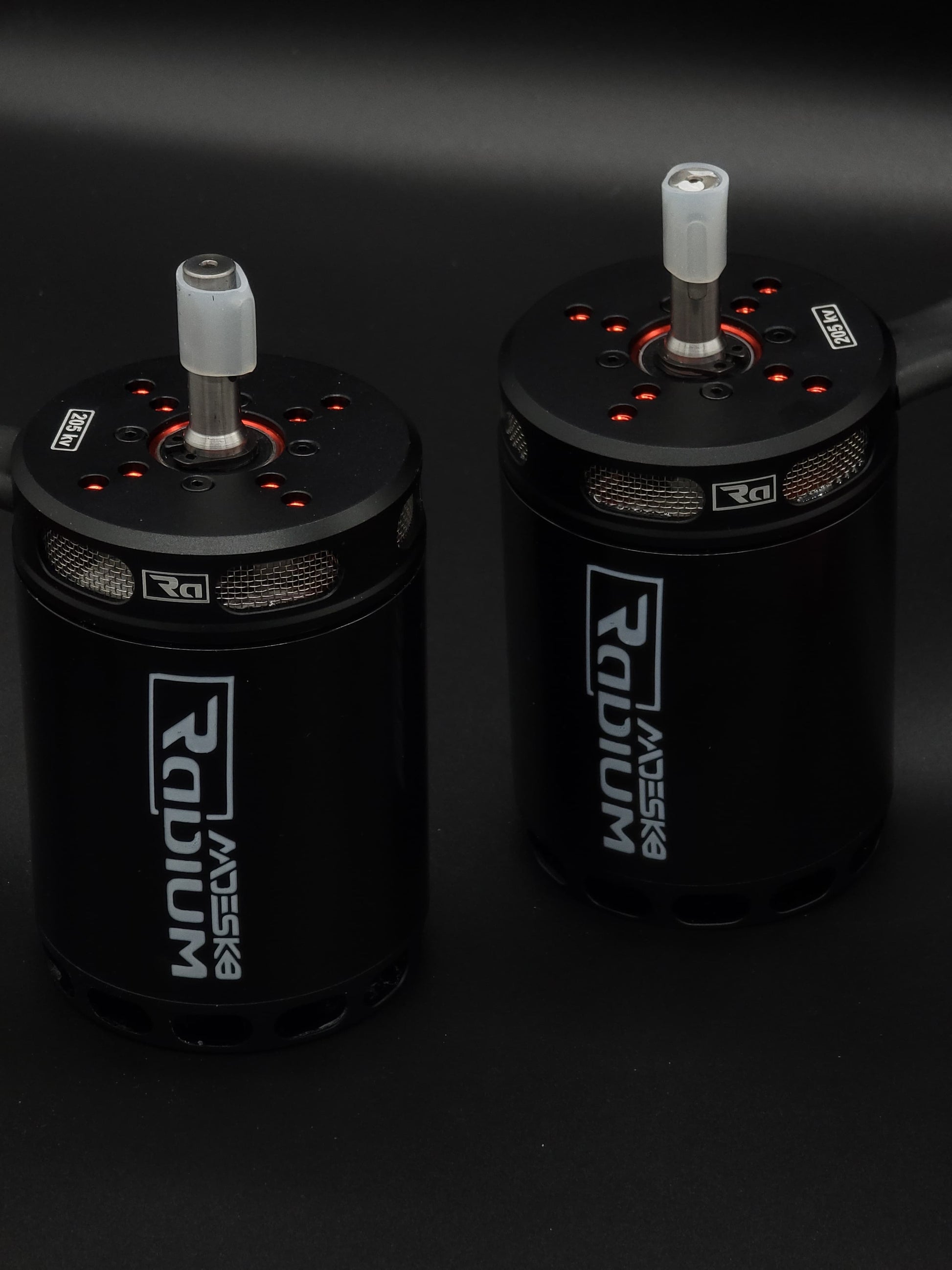

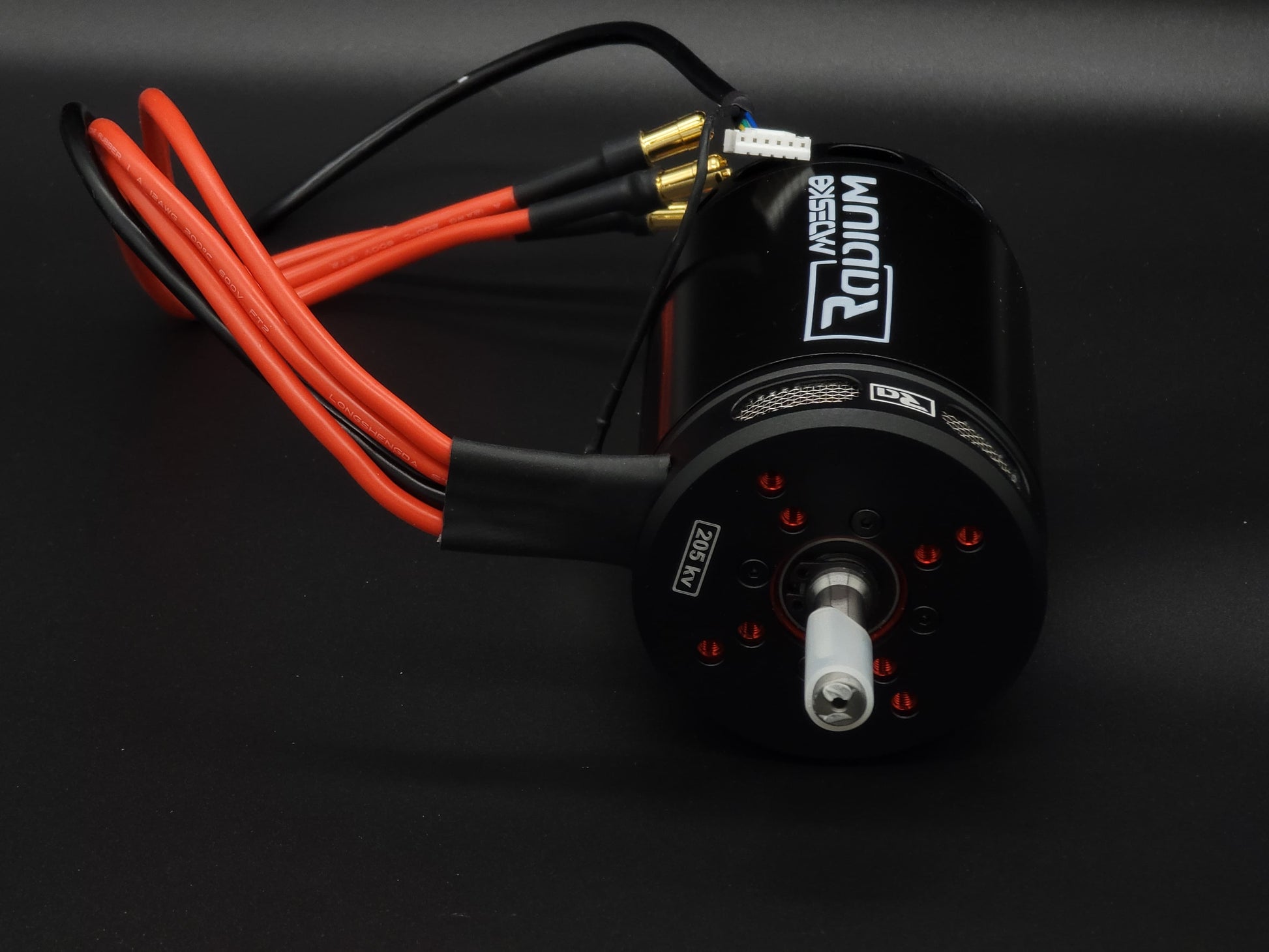

MAD 6495 by Radium Performance

Born out of a need for more, the Radium 6495 were designed for those wanting to push the envelope of performance. Your race board's about to get faster with the extra motor length alone providing a 20% increase in power, but we took things further by upgrading the magnets to provide another 6% increase in torque. Along with upgraded sensors to lower potential voltage spikes to the ESC caused by all the extra power, and a stiffened rotor structure to keep vibration at a minimum, the new motors mean serious business.

MAD ESK8 is the first official authorized distributor of Radium Performance motors. Our partnership means more affordable and accessible power, with exciting possibilities for future improvement.

Save money in the long run and buy motors that last - Properly sized and sealed QUAD NMB bearings, 220C rated windings, 150C rated N48 magnets, high quality epoxy, uniquely front mounted sensors, thick 2.5mm steel cans, tight tolerances and Loctite used liberally, our motors are built to handle eskate abuse.

V8.0: Increased rotor stiffness, upgraded sensor system, shielded sensor cables, added wave spring, 5.5mm AMASS bullets to suit newer Makerx ESC's.

• Sold per piece

• Peak power 10kw (15 seconds)

• Peak Torque 8.5Nm

• Continuous power depends on your setup, riding style and climate.

• 10-20S Voltage

• 64mm diameter, 95mm length

• Curved N48SH magnets rated to 150C

• Battle hardened (magnets reinforced with additional epoxy)

• Quad NMB bearings

• 2.5mm thick steel rotor for impact protection and improved magnetic flux path

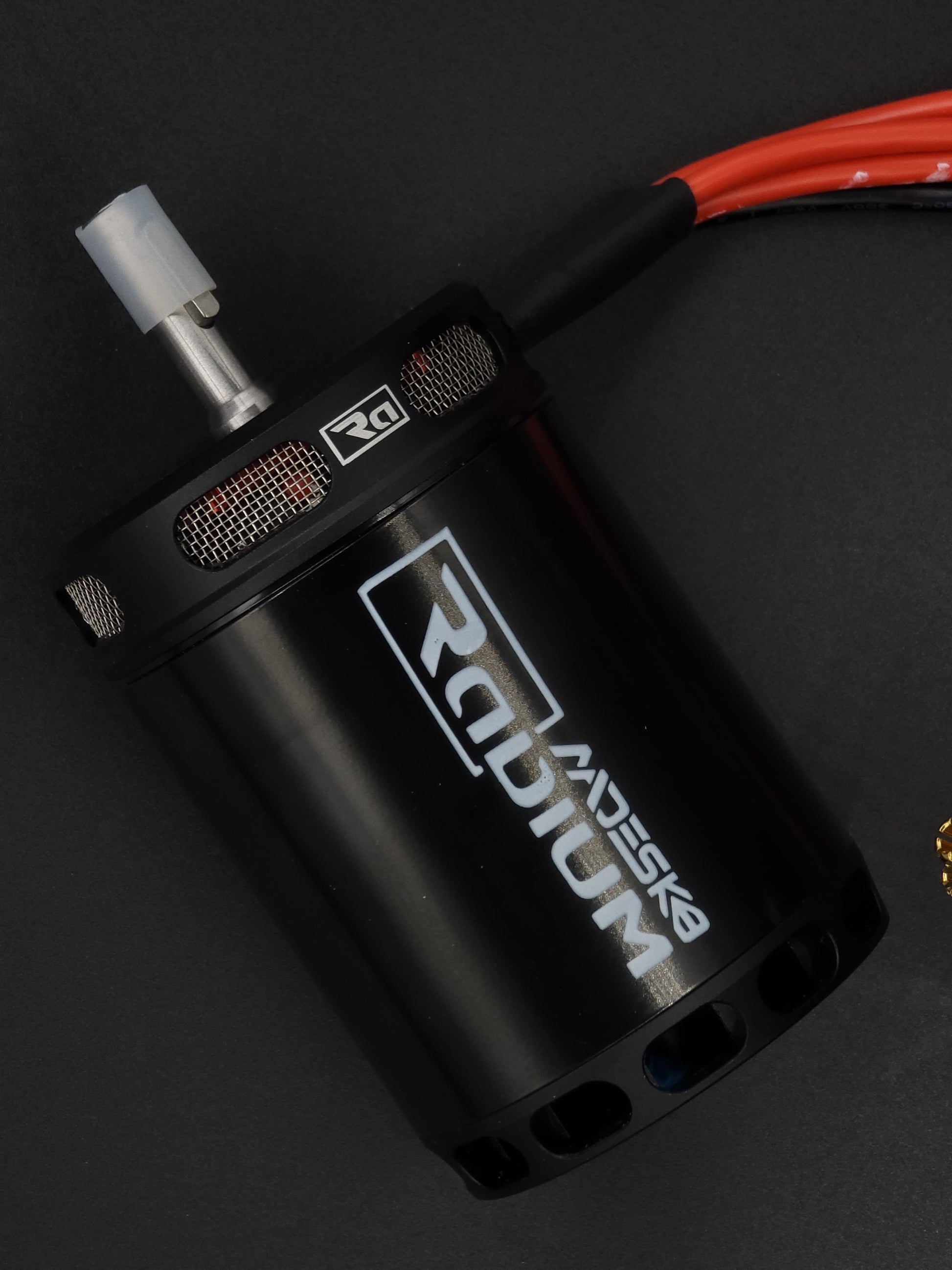

• Cooling system with mesh protected air intakes

• Front mounted sensor PCB to eliminate electrical noise

• High quality enamel windings rated to 220C

• Multi-core flexible Teflon hall sensor wires with 2.0mm JST connector (vesc plug & play), 40cm length

• Red 12awg silicone phase wires (30cm) with 5.5mm AMASS bullets

• 8mm shaft with keyway, 30mm length

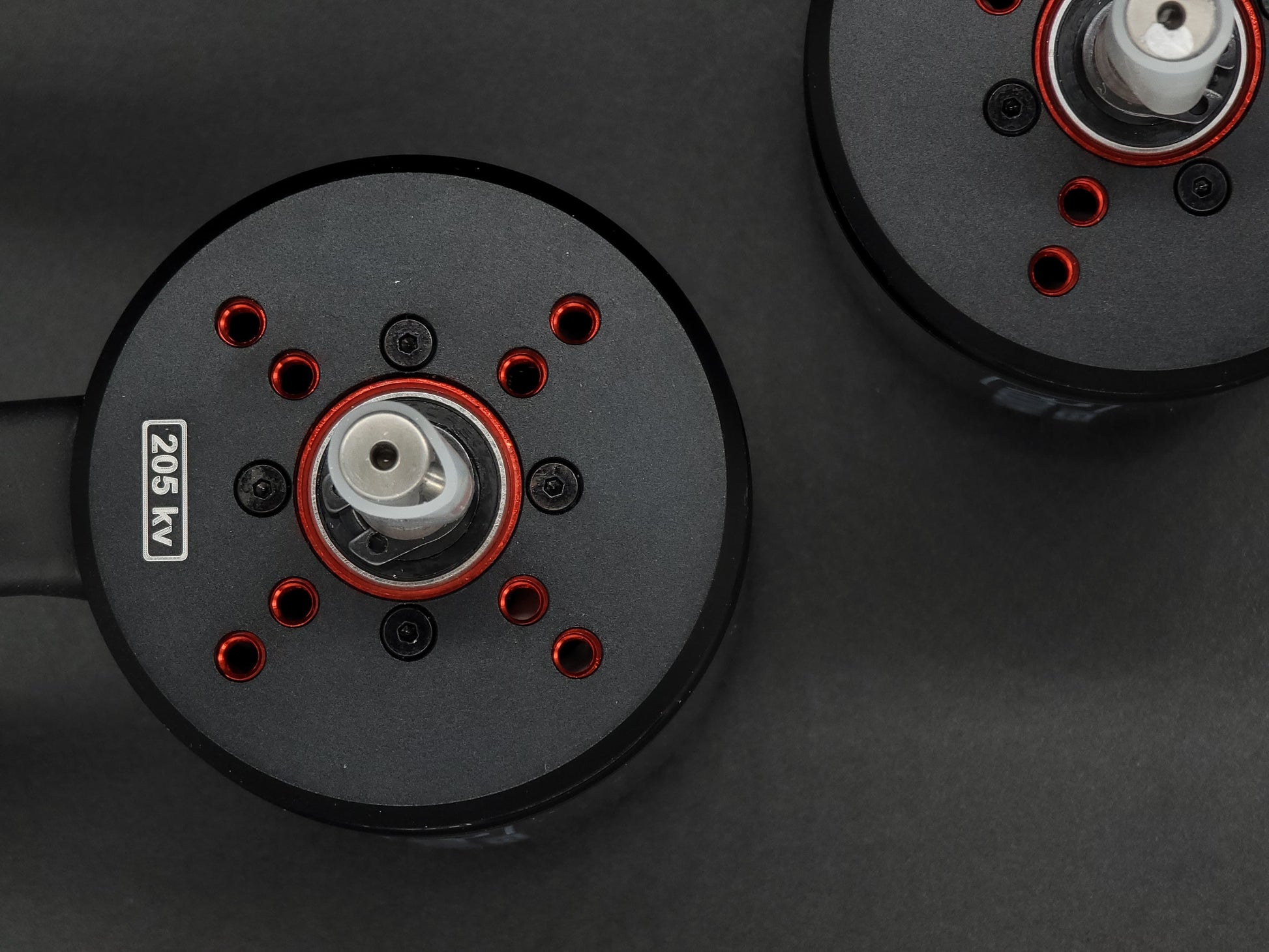

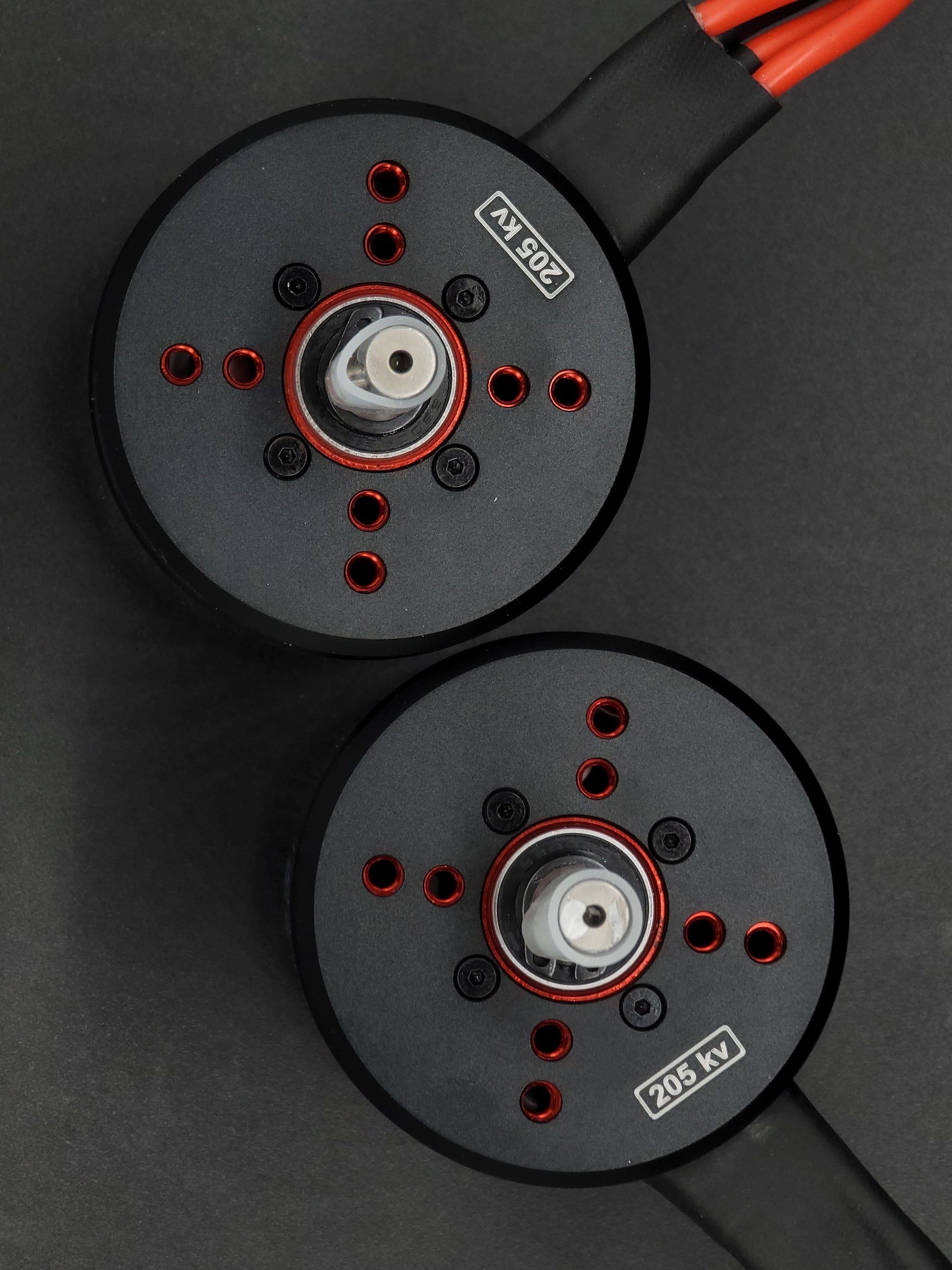

• 44mm & 30mm mounting pattern

• Maximum operating temperature of 100C (recommend adjusting default Vesc settings to 100C start 115C end, and Beta value to 3950k, otherwise motors will not reach 100C)

• Each motor weighs 1300g
